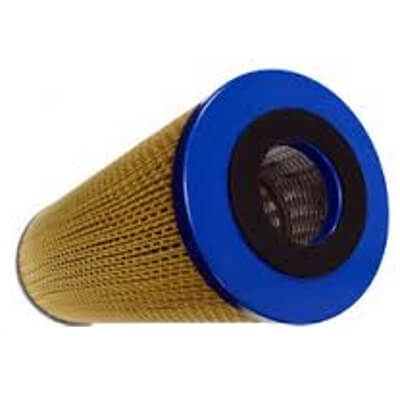

Series Pleated Paper Filter Elements

High Efficiency, Long Life Cartridges for Industrial Fluids.
  • Large Surface Area – Allows high flow rate with low initial pressure drop and maximum contaminant holding capacity.
  • Resin Impregnated Media – Maintains strength, resists effects of water and heat.
  • 75 psi Collapse Strength – Heavy gauge carbon steel center tubes give safety margin
  • against pressure surges.
  • Coated Steel Components – Resist corrosion from most industrial fluids.
  • Corrugated Media – Prevents pleat pinch-off, assuring all filtration media is utilized.
  • Buna-N Gaskets – The best general gasket material available assures positive seal in most fluids.
  • Thermoset Bonding Material – Durable endcap-to-media bond prevents internal bypassing
  • Threaded base filter cartridges – Available for easier installation.


APPLICATIONS
Velcon Pleated Media Cartridges are suitable for a broad range of polar and non-polar fluids. Recommended for applications where the contaminant is granular (non-colloidal), allowing maximum utilization of the high surface area.

Suitable for:

  • All Hydrocarbon Fuels
  • Cutting Oils
  • Glycols
  • Degreasing Fluids
  • Water Emulsion Coolants
  • Naphtha
  • Lube Oils
  • Ethyl Alcohol
  • Insulating Oils
  • Toluol
  • Synthetic Oils
  • Hydraulic Oils
  • DieselFuel
  • Biodiesel Fuel


SPECIFICATIONS
  • Recommended changeout differential pressure - 25 psid
  • 75 psi Collapse strength
  • Micron ratings from 1/2 to 75
  • 98%+ Nominal filtration efficiency
  • 5 - 9 Operating pH range
  • 250°F Maximum operating temperature
