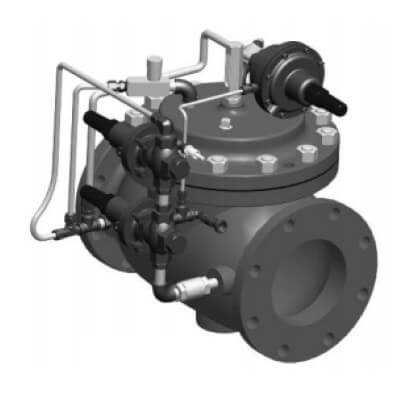

Series 114 Hydrant Control Valve

The Common OCV Model 114-1 is a hydrant control valve for hose truck systems, and is designed for aircraft refueling services. Known as either a refueling or a hydrant control valve, it is the typical control valve for hydrant refueling systems and is used in conjunction with a hydrant hose truck system or refueler. It performs the following functions:

Opens and closes via pneumatic deadman control.
While open, modulates to control downstream pressure at a predetermined set point.
Closes rapidly to prevent undue pressure buildup due to a rapid reduction in demand.

Our Hydrant Control Valves for Hose Truck Systems Model Features:

Pneumatic deadman control
Pressure reducing pilot senses valve outlet or pressure compensating venturi
High capacity surge control minimizes pressure buildup on reduction of flow
Opening speed control
Automatically opens for downstream thermal relief or defueling
Equipped with visual indicator to monitor valve position
Can be maintained without removal from the line
Factory tested and can be pre-set to your requirements

PRODUCT ID: 114 Series

Product Sheet
