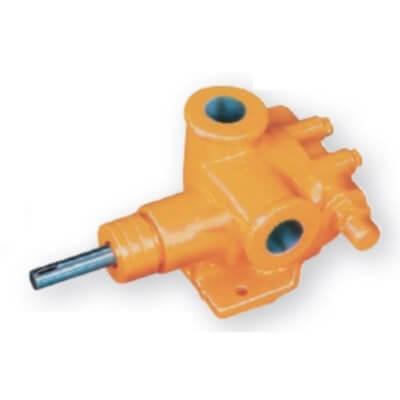

Series Z Internal Gear Pumps

General Purpose application pumps utilising the renowned 'Internal Gear' Principle - only two basic moving parts.  A complete range of highly efficient pumps which off excellent self priming capabilities, quiet operation, smooth continuous flow, low shear, reversible flow, minimal maintenance and simplicity.
Fields of Application
Low flow general purpose industrial applications. Ideally suited for fuel oil transfer and injection processes particularly OEM uses
Constructional Features
  • Mechanical seal/hydraulic packing
  • Integral bypass valve - optional
  • Direct coupling to synchronous speed motors
  • High efficiency
  • Robust, lightweight and compact
Materials of Construction
  • Casing - Cast Iron, Ductile Iron
  • Rotors - Ductile Iron, Cast Iron
  • Shaft - High tensile hardened alloy steel
Range of performance
  • Flows to 24 L/min
  • Differential Pressures to 2,000kPa
  • Viscosities to 10,000cSt
  • Temperatures to 200°C

PRODUCT ID: Z Series
