TODO-Gas Couplings

Designed for the safe transfer of LPG (typically Propane / Butane) in both liquid andvapour phases. Constructed using materials designed specifically torecognise the unique properties of LPG and terminal handling characteristics. Ultra low release on disconnection not only improves safety but also satisfies even the most stringent of environmental standards.
  • Lowest emission volumes on disconnection.
  • No liquid release on connection.
  • Valves are closed and sealed before disconnection is permitted.

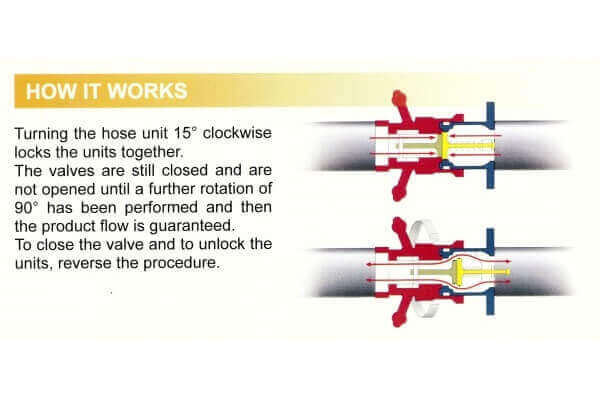

  • Valves open and close automatically.
  • Rapid connection and disconnection.
  • Integral swivel.
Sizes: 1" to 3"
Materials 1": Gunmetal/brass and stainless steel 316L.
Materials 2": Stainless Steel AISI316L/specific stainless steel.
Materials 3": Stainless Steel AISI316L.
Seals: Viton,Nitrile, other on request.
Working Pressure: PN25.
Test Pressure: Working Pressure ±50%.
End Connections: BSP and NPT threads, DIN,ASA, TW and TTMA flanges (available for both tank and hose units).

PRODUCT ID: TODO-GAS Series
