TODO-Matic Series

DRY-BREAK ® Systems are used in any application where the accidental spillage of liquids must be avoided. Emco Wheaton invented the term "DRY-BREAK ® " in the1950s and it has become recognized in the industry as the leading brand of couplings that allow for spill-free disconnect of the two components. The two components are referred to as the "coupler" or "hose unit" and the "adapter" or "tank unit".

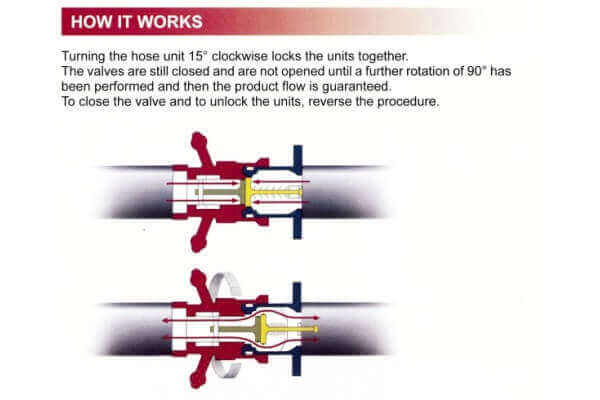

  • Valves open and close automatically on connection and disconnection.
  • Simple single action operation, no levers or switches to operate.
  • Valves are guaranteed closed prior to disconnection.
  • Minimal residual loss on disconnection (eg max .35cc for 2")
  • Will connect and disconnect under pressure and flow where necessary.
  • Extremely reliable, very few moving parts.
  • Robust construction, no external operational components.
  • Available with selectivity system to prevent cross contamination.
  • Reduces spillages to virtually zero.
  • Dramatically improves both operational and fugitive emission performance.
  • Reduces the possibility of human error in transfer operations.
Sizes: 1" to 6"
Materials: Aluminium, Gunmetal and Stainless Steel 316L, others on request.
Seals: Viton, Nitrile, EPDM,Chemraz,Kalrez
Working Pressure: PN10 -PN25
Test Pressure: Working Pressure ±50%
End Connections: BSP and NPT threads. DIN,ASA, TW andTTMA flanges (available for both tank and hose units).

PRODUCT ID: TODO-Matic Series
