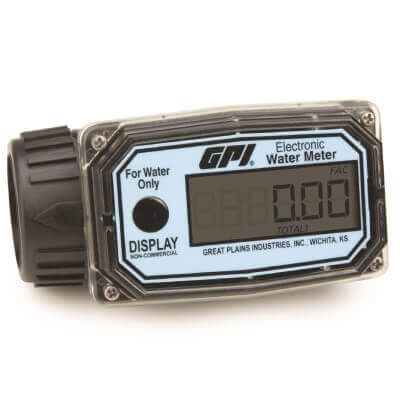

ELECTRONIC DIGITAL WATER METER

Designed for indoor or outdoor year-round use on milk and water systems in the 10 to 100LPM flow range. Calibrated at the factory for use with water.
SPECIFICATIONS
  • Power: Two AAA batteries that are easily replaced yearly by the user. Approximate battery life is 9,000 hours.
  • Unit of Measure: Litres or Gallons
  • Flow Range: 10 to 100LPM
  • Typical Accuracy: * 5%
  • Repeatability: 0.5%
  • Design Type: Turbine
  • Wetted Materials: Housing Nylon Bearings Ceramic Shaft Tungsten Carbide Rotor Nylon Retaining Rings 316 stainless steel
  • Max Working Pressure: 10.3 bar 151 PSI
  • Threads: (Female) 1 inchbsp (150 PSI)
  • Max Batch Total: 9,999
  • Max Cumulative Total: 9,999
  • Operating Temperature: -10° to + 54°C
  • Storage Temperature: -40° to +70°C
  • Weight: 190 grams
  • Dimensions: Width 10.2 cm Height 6.4 cm Depth 5.1 cm
  • Local Display: Included 2 totals (1 cumulative 1 reset batch total) Permanent factory calibration for water.


PRODUCT ID: 1N12LM
