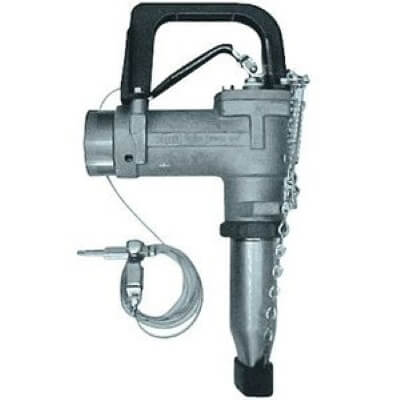

OPW AIRCRAFT NOZZLE

Liquip are proud to offer OPWs range of 295 series overwing aircraft refueling nozzles.

A lightweight aluminium design and dual poppets allow for an easy to open nozzle against high inlet pressures.

  • Lightweight and durable aluminium design.
  • Dual poppets to allow for an easy to open nozzle against high inlet pressures.
  • Vinyl-coated lever.
  • Colour-coded composite lever guard to distinguish between AVGAS and Jet A1.
  • Right angle design which provides larger lever area for better grip and easier control.
  • 100 mesh strainer to prevent foreign matter from entering fuel tank (easy to remove and clean).
  • Dust cap keeps spout free from dirt and stop fuel drippage when connected.
  • Adjustable dash pot which permits adjusting the main poppet closure rate over a wide range of flows to overcome line shock with minimum after flow.
  • Built in swivel to eliminate twisting and kinking of the hose.
  • NPT female threads at inlet end - accepts all 1 1/2" male connections.
Grounding wire assembly included on all aviation nozzles.

PRODUCT ID: 295SAJ-0200
