HI FLOW OIL METER

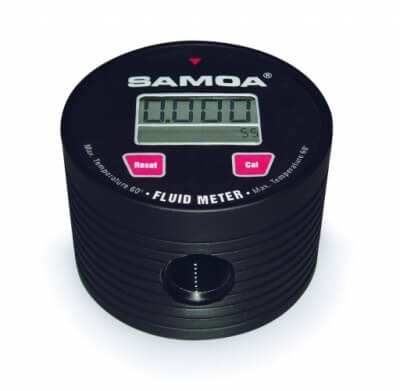

Oval gear in line meters with electronic digital LCD display. The meter has two separate displays: a resettable 4 digit batch display and a 6 digit permanent totalizer. Meters are factory calibrated and they can easily be re-calibrated in the field for increased accuracy. Meters can measure in litres, quarts, pints or gallons. Meters are compatible with lubricants up to SAE 240, diesel and glycol solutions. Works with two AAA alkaline batteries.

Maximum working pressure: 70 bar (1,000 psi).
Maximum working temperature: 60 ºC (140 ºF).
Flow range: 5.5 l/min (1.45 US gpm); to 50 l/min (13.2 US gpm).
Accuracy: ±0.5 %.
Pressure drop: 0.5 bar (7 psi).
Inlet and outlet threads: 1/2" BSP (F).

PRODUCT ID: 366725

Product Sheet
