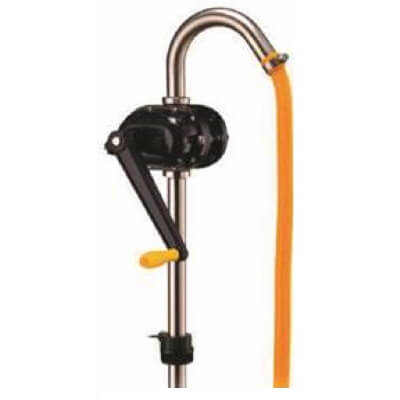

HIGH FLOW ROTARY PUMP
This hand pump is used for weak/strong-base acid and alkali liquids-a model providing the highest oil-pumping volume amongst models of kind (one liter per rotation; not designed for viscous liquids). With Ryton body,304SS spout, tube, PE hose.
Pump Type:
Rotary - Gear
Flow:
1L / Rotation
Maximum Fluid Temperature:
140°F / 60°C
Mounting:
2" MNPT Bung Adapter
Suction Tube Length:
40" Maximum
Inlet:
1-1/4" O.D.
Outlet:
1" O.D. Curved Spout
Wetted Parts:
PPS,304SS, Teflon & NBR
Maximum Viscosity:
500 SSU (or SAE 30)
Option:
Rubber Hose and Non-drip Nozzle
Standard Packing: 5pcs/ctn, NW:20kgs,GW:22kgs, Cuft: 3.2'
Made from advanced Non-oxidation and Rust-resistant materials - Stainless Steel andPolyPhenylene Sulfide (PPS).
Ideal for transferring soluble, corrosive, volatile and aggressive chemicals, such as Esters, Alcohols, Alkali, Acids, Hydrocarbons and other fluids are compatible with pump component materials.
Also suitable for transferring Petroleum based fluids, Transmission Fluid and water based chemicals.
Supply with 2" bung adapter and 1 meter stainless steel suction tube to fit most 55 gallon drums.
Self-priming unit, dispenses approximately 1 liter per stroke.
Supply with Suction Filter to filter the dirt and ensure pump life.
Counter clockwise and clockwise operation for discharging freely.
Vertical conveying distance of 15 meters, horizontal conveying distance of 50 meters.
Do not use with organic solvents, alkalis, acids and water-based fluids.
PRODUCT ID:
RP99RY
