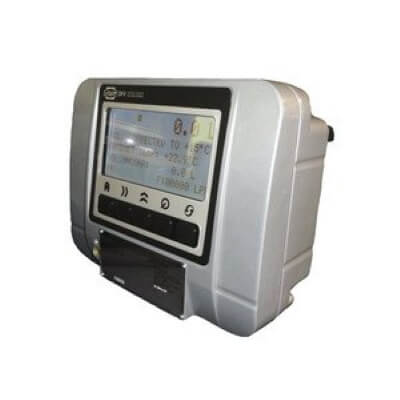

ELECTRONIC METER REGISTER

Liquip have uniquely developed the DFV series which has become the most technically advanced Register and Level gauging unit available on the market.

Available as a standalone Register, Level gauge CPU or combined unit, the DFV combines long service life with simple operation and reliability.

The DFV is a lightweight unit and is approved for use in Zone 1 hazardous areas (IECEx & ATEX) truck mounted or fixed site product transfer applications.

-Functions as a Electronic Register, dedicated Level gauge CPU or combined unit.

ALL POTTED UNITS

Safety Approved for use in Zone 1 locations.
Weights & Measures Approved: NMO UK, NMI Aus, W&M NZ, MID Europe, Measurement Canada & NTEP USA.
(EU, Canada & USA = Register function only).
Durable Aluminium housing with hinged
door to allow easy access to internal
connections.
Large display to easily view multiple information simultaneously.
RS232 and CAN communication.
Intuitive set up and programming.
Can be connected to a large digit display.
Operates on 12 or 24 volt installations.
For full features download the DFV101 datasheet.

REGISTER

Preset functionality / batch control.
Solenoid outputs are voltage free and can perform a 2 stage ramp up and ramp down.
No flow timer.
One calibration point with Weights & Measures sealable captive fastener.
Compatible with most flow meters on the market.
Pulse output can be programed as optional additional fourth relay.
Functionally backwards compatible with Liquip EMH registers.
Flowrate displayed on main screen along with volume during delivery.
Future expansion and modularity available.

PRODUCT ID: DFV100

Product Sheet

Data Sheet
