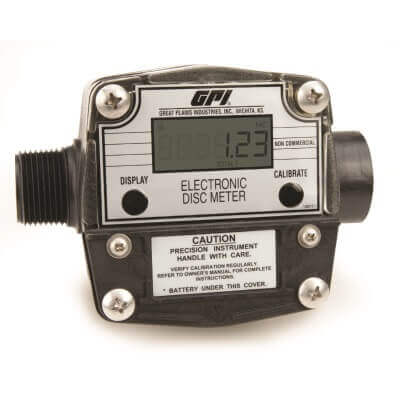

MECHANICAL HERBICIDE METER

Lightweight, corrosion resistant high-tech injection molded plastic housing. Reliable nutating disc measuring chamber. Advanced encapsulated environmentally protected electronic circuitry for high accuracy. Display rotatable in 90deg increments.
  • Design: NutatingDisc
  • Housing: PBT Polyester
  • Port Size: 1 inch NPT
  • Fitting Type: NPT
  • Flow Range: 7-75LPM
  • Accuracy: +-2% of reading Repeatability +-.25%
  • Pressure Rating: 3.4 bar
  • Operating Temperature Range: -9 to 54ºC
  • Housing: PBT Polyester (Valox)
  • Seals: Viton
  • NutatingDisc: PBT Polyester (Valox)
  • Signal Generators:  Ferrite (Ceramic Magnet)
  • Shipping Weight: 1.4 kg
  • Maximum Display Value Batch Total: 999999
  • Maximum Display Value Cumulative Total: 999999
  • Power Source: 9 volt alkaline battery
Electronic Features
  • 2 Totals(1 Cumulative, 1 Batch)
  • Factory Calibration in Gallons or Litres
  • Field Calibration Available


PRODUCT ID: FM-300HL
