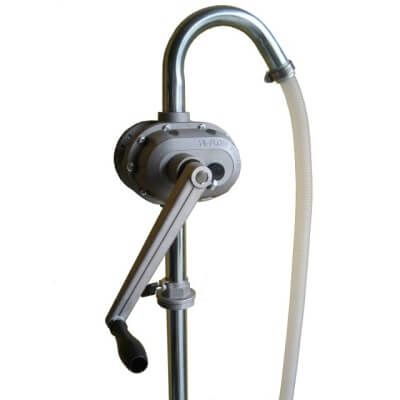

HI-FLOW ROTARY PUMP

Lightweight rotary pump suitable for Jet A1 and Avgas.

Twin-impeller rotary action.
Die-casting alloy and aluminium construction.
Flow rates to 100 LPM.
1065mm riser tube to suit 914mm deep drums and tanks.
1250mm delivery hose.
Flow:1L / Rotation
Maximum Fluid Temperature: 60°C
Mounting: 2" MNPT Bung Adapter
Suction Tube Length: 40" Maximum
Inlet: 1-1/4" O.D.
Outlet: 1-1/4" O.D. Curved Spout
Wetted Parts: Cast Aluminum, Plated Steel, NBR & PE
Maximum Viscosity: 500SSU (or SAE 30)
With Polythylene(PE) Extension Hose and Curved Spout

Commonly used for dispensing or transferring low viscosity and non-corrosive petroleum based fluids, such as Petrol, Diesel, Kerosene, Lube, Fuel, Machine Oil, etc.

Counter clockwise and clockwise operation for discharging freely.
Vertical conveying distance of 15 meters, Horizontal conveying distance of 50 meters.
Supply with 2" bung adapter and 3-piece or 40" long plated steel suction tube to fit most 15, 30 and 55 gallon drums.
Self-priming unit, dispenses approximately 1 liter per stroke.
Do not use with organic solvents, alkalis, acids and water-based fluids.
Supply with Suction Filter to filter the dirt and ensure pump life.

PRODUCT ID: LP32

Manual
