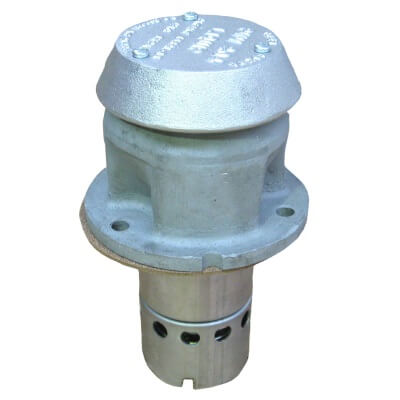

PRESSURE ROLLOVER VENT

Vent is designed for use on tankers which load or discharge with fill caps locked.

Pressure and Vacuum relief for road tankers incorporating rollover protection.
Therollover poppet is always open except when tanker is on an angle greater than 60° from vertical.
Stainless Steel body and poppets.
Stainless Steel housing, shafts and springs.
Teflon Seals.
Gas capacity 240m³/hr free air at 35kPa.
Max recommended liquid loading rate 500LPM.
Pressure setting 15kPa. Vacuum setting -3kPa. Free air bleed hole in body.
